Plug-in nozzles F4/F19
Plug-in nozzles F4/F19

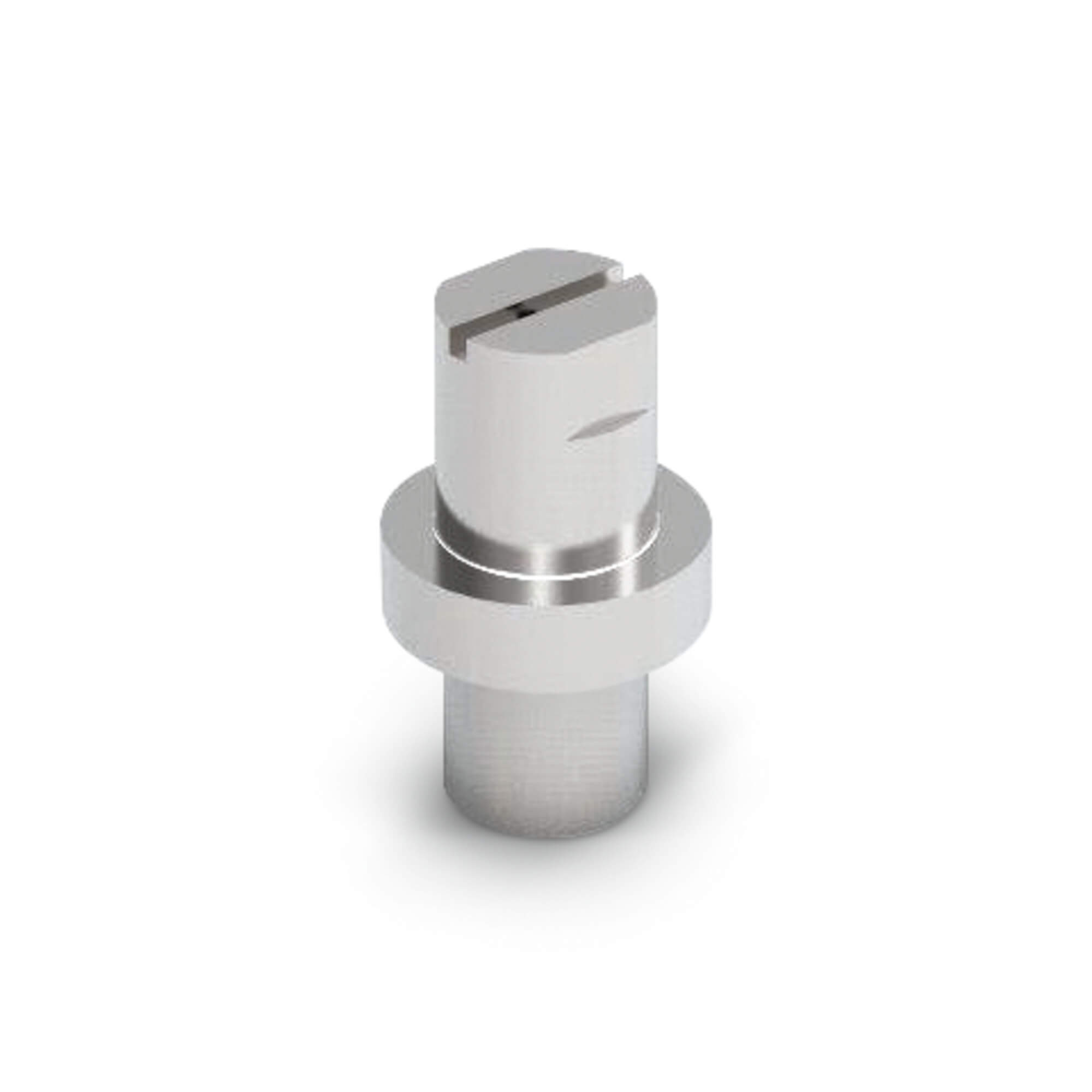

Flat jet nozzle F19, 1,1 mm, 20 °
Plug-in flat jet nozzle F19 with a diameter of 1.10 mm and 20°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,1 mm, 30 °
Plug-in flat jet nozzle F19 with a diameter of 1.10 mm and 30°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,2 mm, 10 °
Plug-in flat jet nozzle F19 with a diameter of 1.20 mm and 10°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,2 mm, 20 °
Plug-in flat jet nozzle F19 with a diameter of 1.20 mm and 20°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,2 mm, 30 °
Plug-in flat jet nozzle F19 with a diameter of 1.20 mm and 30°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,2 mm, 45 °
Plug-in flat jet nozzle F19 with a diameter of 1.20 mm and 45°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,2 mm, 60 °
Plug-in flat jet nozzle F19 with a diameter of 1.20 mm and 60°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,3 mm, 30 °
Plug-in flat jet nozzle F19 with a diameter of 1.30 mm and 30°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,4 mm, 20 °
Plug-in flat jet nozzle F19 with a diameter of 1.40 mm and 20°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,4 mm, 30 °
Plug-in flat jet nozzle F19 with a diameter of 1.40 mm and 30°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,5 mm, 20 °
Plug-in flat jet nozzle F19 with a diameter of 1.50 mm and 20°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1,5 mm, 30 °
Plug-in flat jet nozzle F19 with a diameter of 1.50 mm and 30°. Suitable for working pressures of up to 1,500 bar.
Flat jet nozzle F19, 1.0 mm, 20°, 1 mm, 20 °
Plug-in flat jet nozzle F19 with a diameter of 1.10 mm and 20°. Suitable for working pressures of up to 1,500 bar.
Nozzle carrier F4
Nozzle carrier for nozzle F4. Suitable for working pressures of up to 1,500 bar, with conical nozzle inlet for optimised spray pattern.

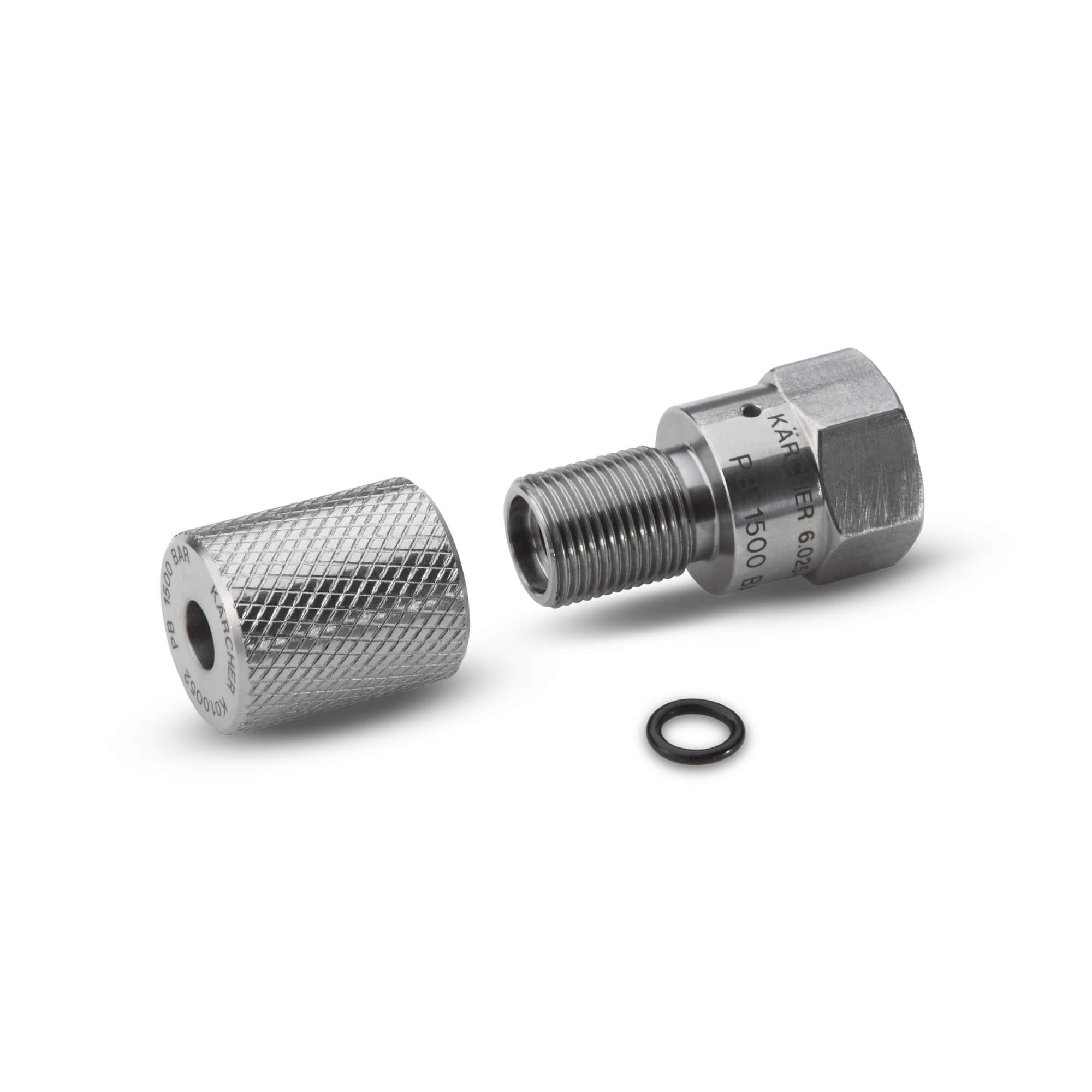

Nozzle carrier F4/F19
Nozzle carrier for nozzle F4 / F19. Suitable for working pressures of up to 1,500 bar.

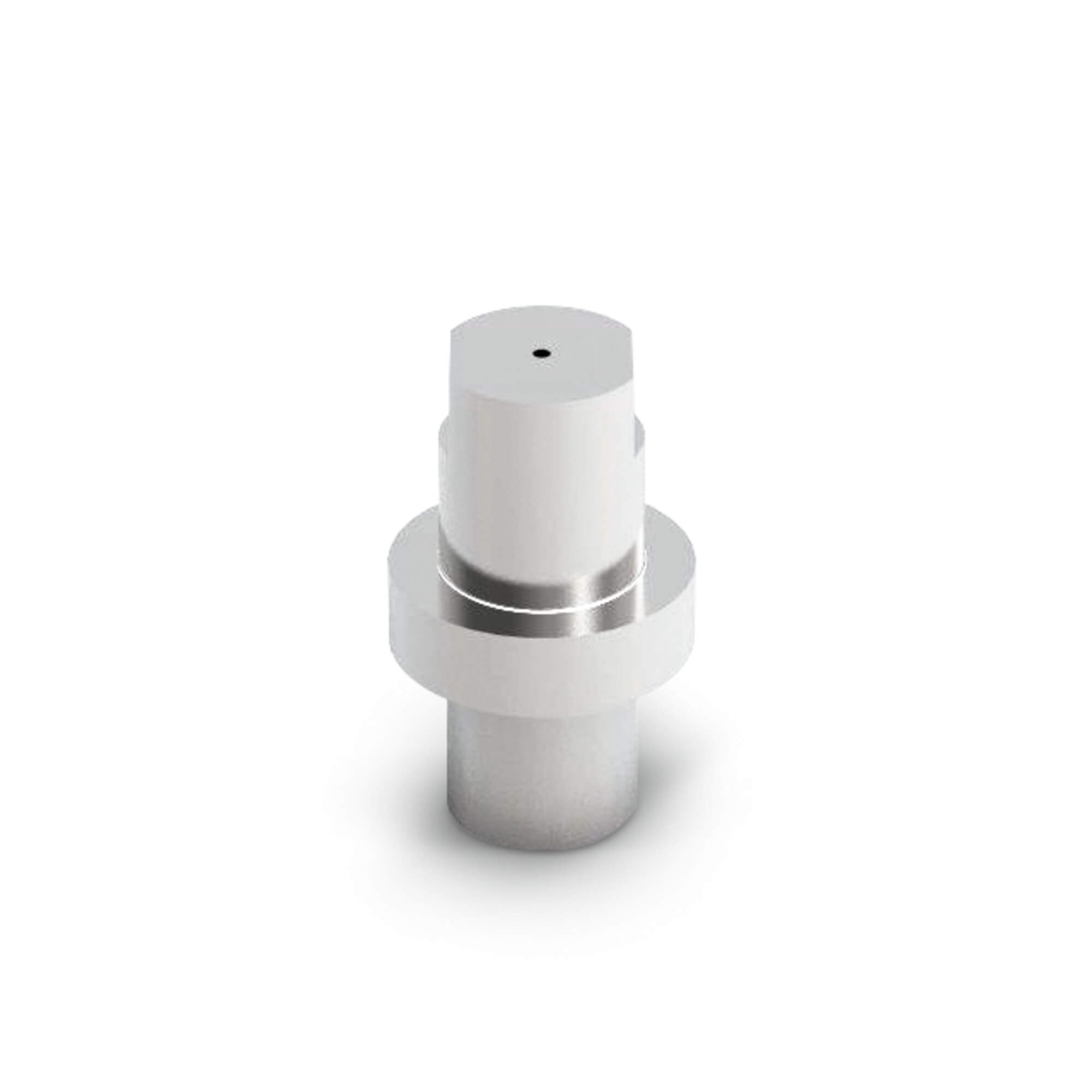

Round jet nozzle F4, 0,8 mm
Plug-in round jet nozzle F4 with a diameter of 0.80 mm. Suitable for working pressures of up to 1,500 bar.
Round jet nozzle F4, 0,9 mm
Plug-in round jet nozzle F4 with a diameter of 0.90 mm. Suitable for working pressures of up to 1,500 bar.
Round jet nozzle F4, 1 mm
Plug-in round jet nozzle F4 with a diameter of 1.00 mm. Suitable for working pressures of up to 1,500 bar.
Round jet nozzle F4, 1,1 mm
Plug-in round jet nozzle F4 with a diameter of 1.10 mm. Suitable for working pressures of up to 1,500 bar.
